Construction Machinery

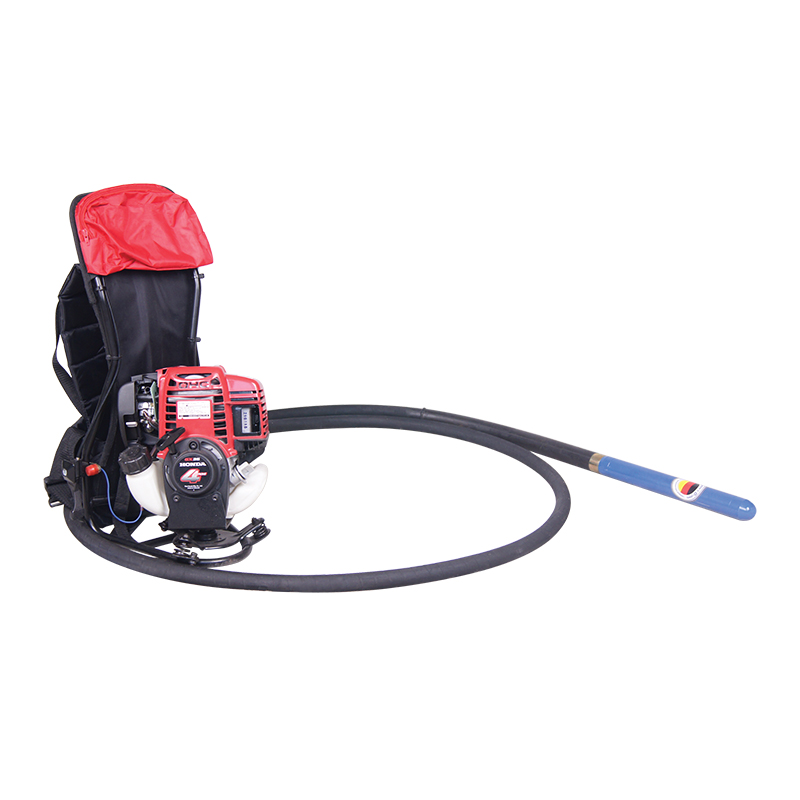

GPV38H

  • Product details
Vibrating Head
Eccentric oversized steel and steel end.
5 different diameters of vibrating heads, totally interchangeable.
Double seal prevents the entrance of lubricants.

Flexible Shaft
Standard length from 1.5 to 2.5 meters.
Strengthening with metallic mesh.
Transmission shafts with reinforced ends, provide higher resistance to
those points where the transmission shaft must withstand more intense bending.

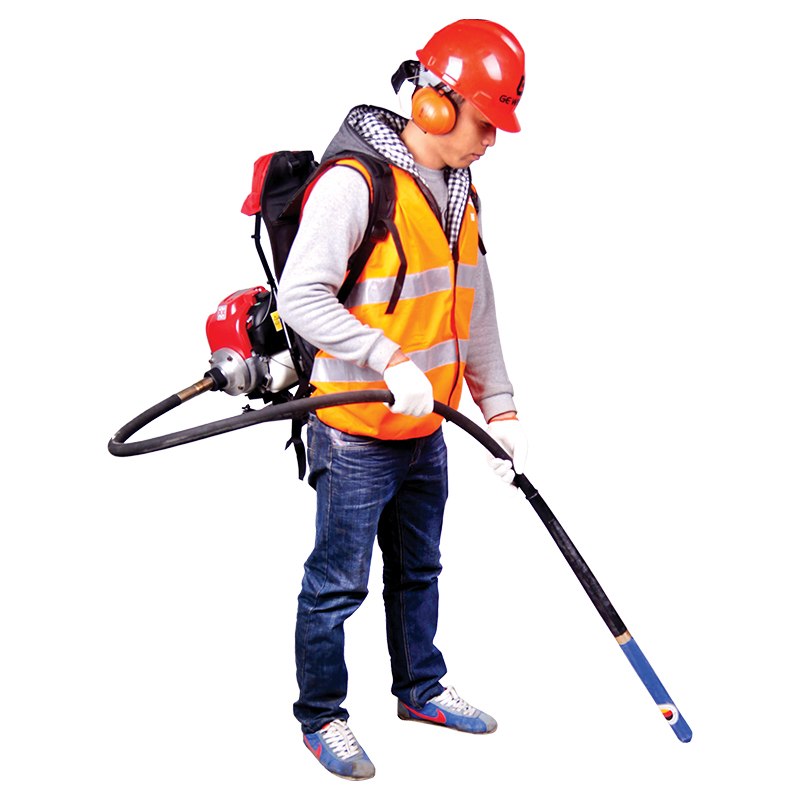

Model GPV38H (put on back)
Engine honda GX35 1.5HP
Engine type 35cc mini 4stroke OHC air-cooled
Vibration rod dia  mm 38
Engine speed  rpm 6500
Vibration frequency  vib/min 9000
Rope length  m 3
Packing weight  kg 13
Packing dimension  (L*W*H)  mm 600×350×350&750×750×55

Factory

LUDWIG has a covers an area of 70000 square meters of modern workshop, office building and Lab center. It has fixed assets of 100 million RMB and 400 employees, including more than100 high-level technician and management staffs.

About LUDWIG
LUDWIG is a professional manufacturer of small general machinery products, such as concrete machinery, road compaction machinery, road maintenance machinery, mobile light tower, pressure washers, generators, engines and other products; At present, the company has Hefei production factory and Fuyang production factory, and has its own laser cutting machine, bending machine, pipe bending machine, CNC machine tool, welding equipment, spraying workshop and other key process manufacturing equipment. The company has decades of R & D experience design engineers and application engineers, can provide OEM and ODM services, the company absorbs and applies German customers decades of European and American market technical requirements, manufacturing high-end products, has served 80 countries and regions around the world.

Company Capability
LUDWIG has passed IS09001: 2008 quality management system certification and GB/T24001 2004/:2004 environmental management system certification, and the export certification: EPA. CARB, PGMA, CSA, CE GS, PC. EC. C-TICK, etc..
